Product Description

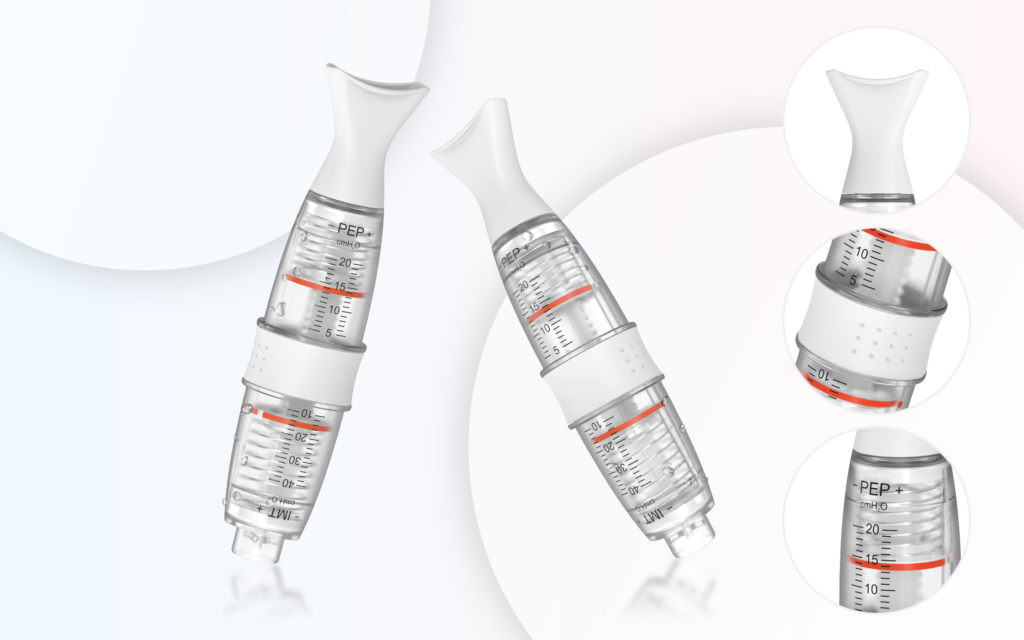

This IMT(inspiratory muscle training)/PEP(Positive expiratory pressure) device is designed to enhance the lung capability to improve the quality of life by exercising the respiratory muscles. A 10-40cmH2O,4 levels of resistance setting for IMT training,and a 5-20cmH2O resistance range of 3 levels are provided to the users with different breathing conditions. Three modes for training IMT,PET and IMT& PEP are offered to exercise the inhalation, exhalation separately or all together.
The efficient personal designed and scheduled breathing improvement courses with different training purposes can be provided for hospital use,and home care use.
Intended Use and Purpose
Can improve lung volumes, which supports swallowing and speech ability.
Helps to improve the lung capacity and lung ventilation.
May improve vocal cord opening assist in weaning from vent (should be carried out under doctor’s indications)
Improve the quality of life for people with
heart failure
Reduce Dyspnoea
Pulmonary rehabilitation
Relaxation
Mindfulness and concentration
Improve cough strength
Supahyoid complex activation
Vocal cord closure
More efficient for O,-CO, gas exchange and normal body processes like speaking,coughing, and swallowing.
Train the upper airway muscles necessary for speech, airway clearance, and expectoration.
Train trunk muscles for the body’s flexibility and rotation.
Prevent aspiration pneumonia (AP) for better health, clear communication, and improved quality of life(QoL).
Reach full potential during competition and stage performances with the help.
Pulmonary rehabilitation after breathing disease.
Practise lung capacity to provide optimal surgical conditions before the operation.
Lung function rehabilitation Post-operation.
Increase the sports performance
Increase the oxygen delivery to the vital organs.
Relieve the fatigue after sports.
Enhance mental health, relieve anxiety and stress.
Operation
1, Attach the mouthpiece suitable to your mouth.
2,IMT Mode: Rotate the IMT unit singly,with the red line lifted or lowered to increase or decrease the resistance level. Attention on the red line is not to over to the maximum limit line.
3,PEP Mode:Rotate the PEP unit singly in the same way with above to set the training level.
4,Adjust both IMT and EMT at the same time according to your training requirements.
Tips:
- Seal well the device with lips, breathe in through your nose, exhale through your mouth. Usually the exhalation time should be maintained 3 times longer than inhalation, but you have to do it according to your breathing ability.
- Diaphragmatic breathing technique is highly recommended for IMT (Inspiratory Muscle Training) and PEP (Positive Expiratory Pressure) training.
Level description
IMT:10-40cmH2O,with a minimum adjustment unit of 2cmH2O adjustment.
PEP:5-20cmH2O,with a minimum adjustment unit of 1cmH2O adjustment.
The error of this device:
±2cmH2O, or±10% is in the normal range.
Errors may occur due to usage patterns, environmental factors, or high frequency of use.
Warning and Suggestion
Don’t share this unit with others for individual use to prevent cross-infections.
Change the new device when the resistance decreases.
Clean the device
Disassemble the device into parts.
Pull out the IMT and PEP units, cleanse the device with tap water, boiled water, or alcohol wipes, shake off the extra water, and make them air dry.
*Be cautious of the spring springing out and avoid cleaning it to prevent rusting.
