For RPM system

Sonmol

By far the most suitable and cost-effective medical devices and solutions for integrating with the RPM (Remote patient monitoring) system in the world.

The professional respiratory medical devices supplier and a self-owned RPM system and application administrator at the same time.



Electronic Peak Flow Meter

The best choice for Asthma and COPD remote patient moniroring

The preffered Medical device for Health provider in Telehealth

  • Better API

  • Seamless integration into any RPM system or Application

  • Safe and fast data transmission.

  • BLE protocol and SDK provided

  • IT support available

  • Bluetooth & Cellular connection

  • OEM/OEM

Peak flow meter with two mouthpieces

  • PEF and FEV1 readings, Green,Yellow, Red zones autoanalysis, can be displayed within one second after a blow.
  • Provides higher accuracy by utilizing the differentrial pressure sensor.
  • “Sonmol PEF” Application is free to use. Asthma personal management information, triggers,sympotoms,environment condition recordings can be recorded for the alternative Asthma prediction and monitoring.
  • Two mouthpieces in shape for a better compatibility.
  • Option for ATS/ERS prediction values.
  •  Rechargeable.
  •  Further calibiration is not needed after factory.
  • Portable.
  • Long lifespan.
  • Cost-effective compared to any existing electronic peak flow meter.

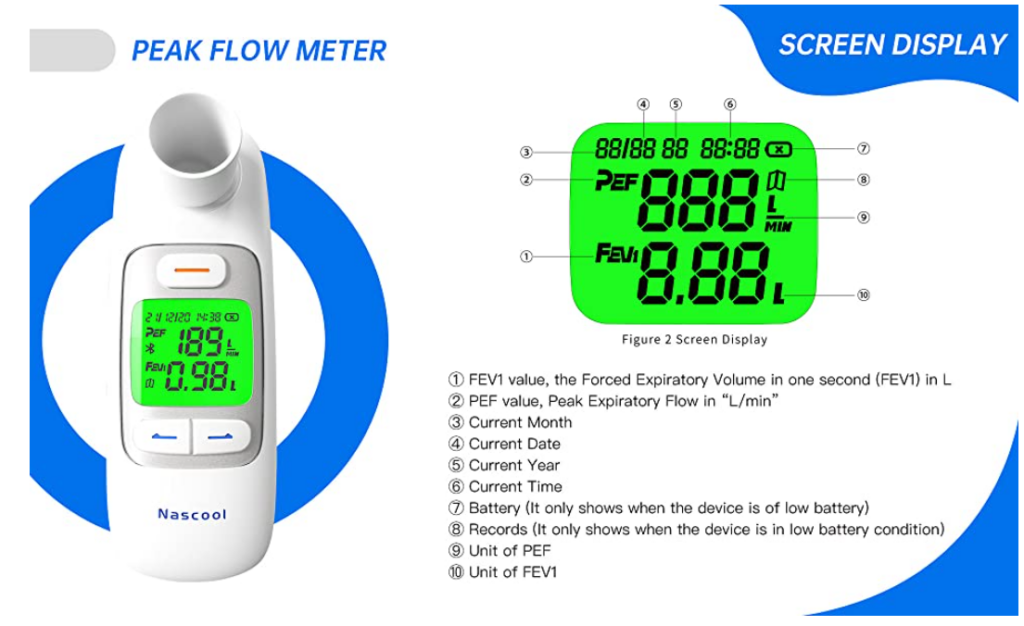

Screen Setting and Display

Sonmol Peak flow meter dispaly time date month year setting

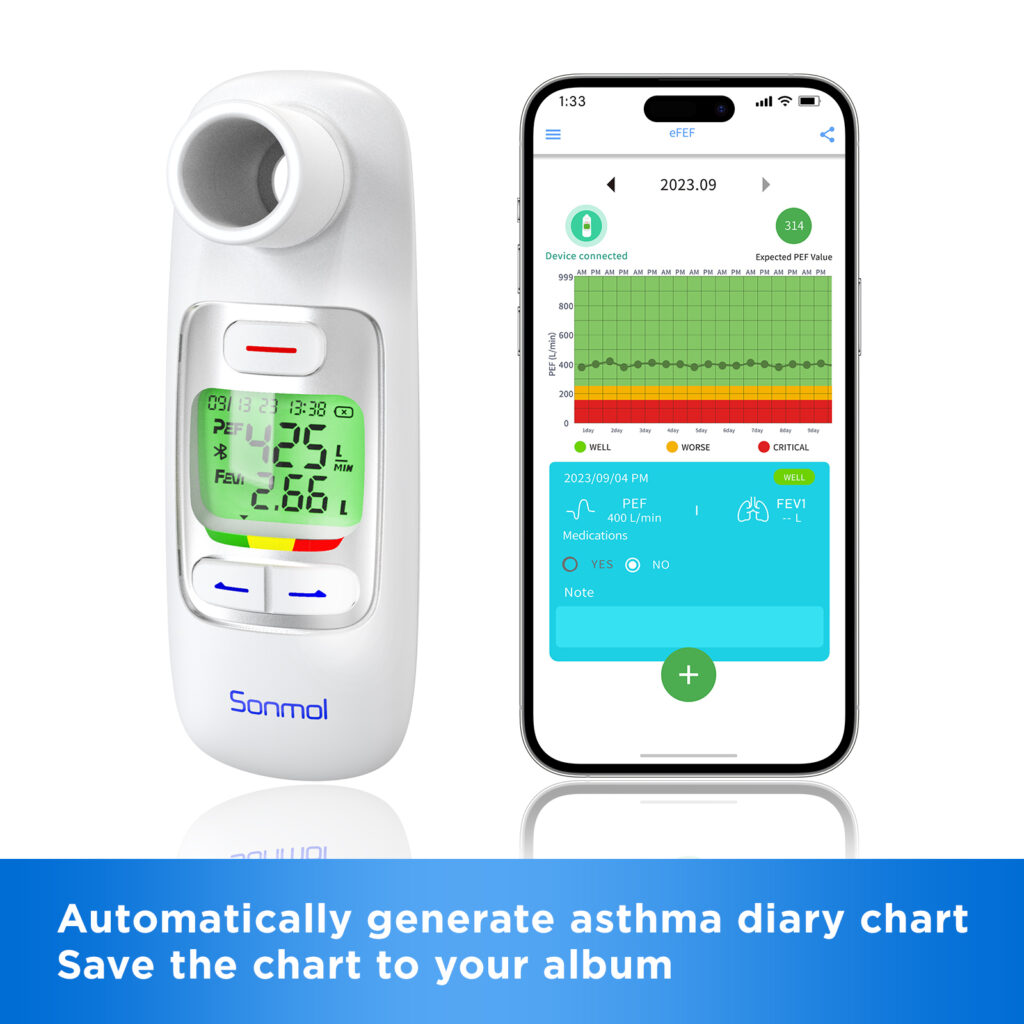

The Asthma diary in our application”Sonmol PEF”

More accurate readings of PEF and FEV1
Asthma Diray the peak flow meter provides

How to use the device

1. Start
Press thepowerbutton; you will hearaclicking soundand see “go” on the screen.

2. Preparation

Hold the peak flow meter. Take a deep breath andseal the mouthpiece tightly with your mouth,Please don’ t block the back of the mouthpiecewith your hands or anything else.

3. Measurement

Blow out as hard and fastas possible through themouthpiece. You will see the data instantly on thescreen. lf you have connected the device to yourphone app, you will see the inforation on your phone.

4. Cleaning

lt’ s essential to keep your device dlean. Pleasewipe the device with alcohol wipesafter each use.

5. Storage

Air dry and store it in a cool and dry place.





Sonmol Respiratory Muscle Trainer With Manometer

Focus on the Respiratory capability improvement and systematic process of breathing rehabilitation.

Remotely predicting the breathing condition along with the peak flow mete

Sonmol respiratory muscle trainer with manometer



Efficiently help health providers, physicians, and therapists monitor and guide patients and users to improve the efficiency of respiratory rehabilitation and compliance with respiratory capacity improvement.

  • Seamless integration to any remote health care system or application.
  • Bluetooth Connected
  • Instant Data Delivery
  • Integration Support
  • Better API

1.Provides the real-time primary test and training measurements.

2.Monitor the breathing performance during each training session.

3.Knowing the rehabilitation process and how much the user has improved.

4.Remotely predicted the breathing issues of the Asthma and COPD acute attack with weak breathing performance.

5.Supervise the frequence of carrying out the respiratory muscle training.

6.Flexibly set the inhalation and exhaltion practice courses for paitents.

7. Remotely training indication.

8. Combained with the electronic peak flow meter to provide more patient air flow information collection, observation and warning basis.

Blow in and out training

Why does this device improve the application compliance

Electronic manometer for the respiratory muscle trainer
  • Bluetooth Connection.
  • Utilizing the differential pressure sensor to get the data more accurate.
  • Smooth data delivery.
  • Test both MIP(maximum inspiratory. pressure)&MEP(maximum expiratory pressure).
  • High Ingegrated efficiency.

Operate the manometer

  1. Power On
  2. Press the power button
  3. Power Off
  4. Manual: Press the power button.
  5. Automatic shutdown: If there’s no activity for 5 minutes, the device wil automaticaly power off and disconnect from Bluetooth
  6. Training Mode: Real-time display of current inspiratory and expiratory pressure values.
  7. MAX Test Mode: Test and display the maximal inspiratory and expiratory pressure.
  8. Unit Switching: Switch the unit between cmH20, kPa, and Psi.
  9. Measuring Range: Inspiratory & Expiratory pressure:0-30 kPaBluetooth Connection: Launch the “eRMT” app and connect via Bluetooth
